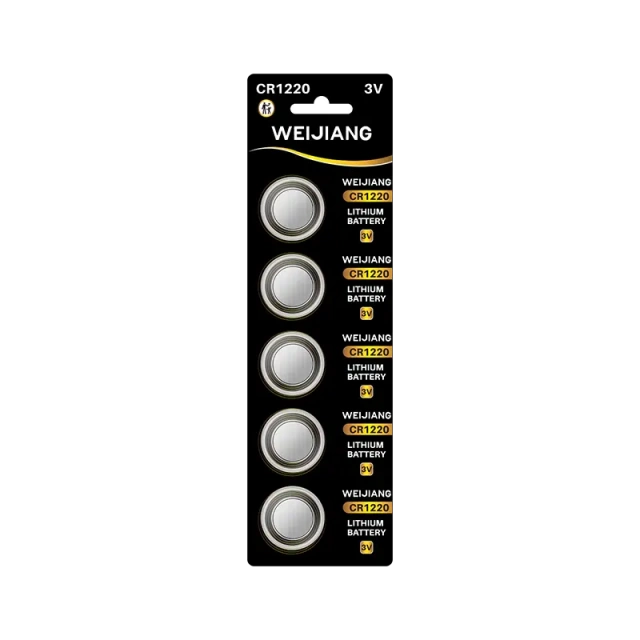

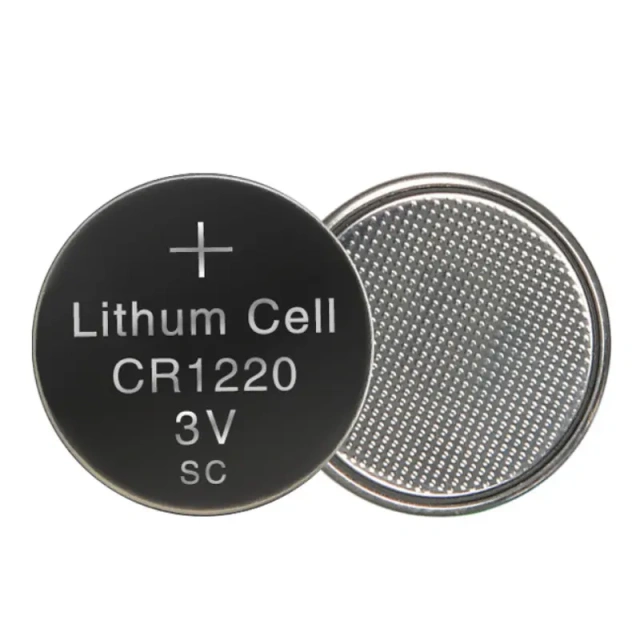

CR1220 Lithum Coin Cell | Weijiang Power

CR1220 is a non-rechargeable lithium coin cell battery commonly used in small electronic devices such as calculators, watches, and remote controls. This battery is 12.5mm in diameter and 2.0mm in thickness, making it a compact and lightweight power source. It has a nominal voltage of 3 volts and a capacity of approximately 40 mAh. CR1220 batteries are known for their long-lasting power, reliability, and resistance to leakage. They have a long shelf life and can operate in various temperatures, making them suitable for use in various environments. These widely available batteries are popular for low-power devices requiring a stable power source.
  • CR1220 Lithum Coin Cell | Weijiang Power
  • CR1220 Lithum Coin Cell | Weijiang Power
  • CR1220 Lithum Coin Cell | Weijiang Power
Description

Key Features:

  • CR1220 Battery Diameter: 12 mm
  • CR1220 Battery Height: 2.0 mm
  • CR1220 Battery Voltage: 3.0 V
  • CR1220 Battery Chemistry: Lithium Manganese Dioxide (Li-Mn02)
  • CR1220 Battery Capacity (mAh): 210 mAh

Specification for NiMH Batteries:

Below NiMH batteries list are only for reference. Other options are also available.
Customized NiMH battery and battery pack is available, CONTACT US for more detailed information. We have rich experience from battery concept to production, seamlessly, and on-budget.
Let Weijiang Be Your Battery Pack Manufacturer!

Model   Nominal
Voltage
(V)
Standard
Capacity
(mAh)

Termination Voltage (V)   Maximum Continuous Current (mA)   Maximum Pulse  Current(mA) Diameter
(mm)
Height
(mm)
Weight of Unit Cell
(g)
CR927 3.0 30 2.0 0.2 5 9.5 2.7 0.6
CR1025 3.0 30 2.0 0.2 5 10.0 2.5 0.8
CR1130 3.0 40 2.0 0.2 5 11.6 3.0 1.0
CR1212 3.0 18 2.0 0.2 5 12.5 1.2 0.6
CR1216 3.0 25 2.0 0.2 5 12.5 1.6 0.7
CR1220 3.0 40 2.0 0.2 5 12.5 2.0 0.8
CR1225 3.0 48 2.0 0.2 5 12.5 2.5 0.9
CR1616 3.0 50 2.0 0.3 8 16.0 1.6 1.2
CR1620 3.0 70 2.0 0.3 8 16.0 2.0 1.3
CR1625 3.0 90 2.0 0.3 8 16.0 2.5 1.8
CR1632 3.0 120 2.0 0.3 10 16.0 3.2 2.3
CR2016 3.0 75 2.0 0.3 10 20.0 1.6 1.7
CR2025 3.0 150 2.0 0.5 15 20.0 2.5 2.4
CR2032 3.0 210 2.0 0.75 15 20.0 3.2 3.0
CR2320 3.0 130 2.0 0.75 15 23.0 2.0 4.0
CR2330 3.0 260 2.0 0.75 15 23.0 3.0 4.0
CR2354 3.0 530 2.0 1 15 23.0 5.4 5.8
CR2430 3.0 270 2.0 1 15 24.5 3.0 4.5
CR2450 3.0 550 2.0 1
5 24.5 5.0 6.5
CR2477 3.0 950 2.0 1 15 24.5 7.7 9.5
CR3032 3.0 580 2.0 1 15 30.0 3.2 6.8
CR123A 3.0 1300 2.0 1500 3000 17.0 33.5  16
