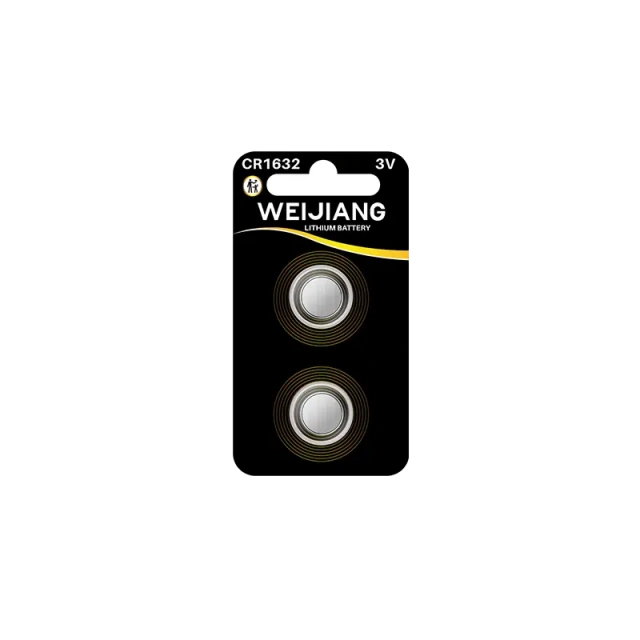

CR1632 Lithium Coin Cell | Weijiang Power

CR1632 battery is a non-rechargeable lithium coin cell battery commonly used in small electronic devices such as calculators, digital thermometers, and keyless entry systems. This battery is 16mm in diameter and 3.2mm in thickness, making it a compact and lightweight power source. It has a nominal voltage of 3 volts and a capacity of approximately 120 mAh. CR1632 batteries are known for their reliable performance, long-lasting power, and resistance to leakage. They have a long shelf life and can operate in various temperatures, making them suitable for use in various environments. These widely available batteries are a popular choice for low-power devices requiring a compact and reliable power source.
  • CR1632 Lithium Coin Cell | Weijiang Power
  • CR1632 Lithium Coin Cell | Weijiang Power
  • CR1632 Lithium Coin Cell | Weijiang Power
Description

Key Features:

  • CR1632 Battery Diameter:  16 mm
  • CR1632 Battery Height: 3.2 mm
  • CR1632 Battery Voltage: 3.0 V
  • CR1632 Battery Chemistry: Lithium Manganese Dioxide (Li-Mn02)
  • CR1632 Battery Capacity (mAh): 210 mAh

Specification for NiMH Batteries:

Below NiMH batteries list are only for reference. Other options are also available.
Customized NiMH battery and battery pack is available, CONTACT US for more detailed information. We have rich experience from battery concept to production, seamlessly, and on-budget.
Let Weijiang Be Your Battery Pack Manufacturer!

Model   Nominal
Voltage
(V)
Standard
Capacity
(mAh)

Termination Voltage (V)   Maximum Continuous Current (mA)   Maximum Pulse  Current(mA) Diameter
(mm)
Height
(mm)
Weight of Unit Cell
(g)
CR927 3.0 30 2.0 0.2 5 9.5 2.7 0.6
CR1025 3.0 30 2.0 0.2 5 10.0 2.5 0.8
CR1130 3.0 40 2.0 0.2 5 11.6 3.0 1.0
CR1212 3.0 18 2.0 0.2 5 12.5 1.2 0.6
CR1216 3.0 25 2.0 0.2 5 12.5 1.6 0.7
CR1220 3.0 40 2.0 0.2 5 12.5 2.0 0.8
CR1225 3.0 48 2.0 0.2 5 12.5 2.5 0.9
CR1616 3.0 50 2.0 0.3 8 16.0 1.6 1.2
CR1620 3.0 70 2.0 0.3 8 16.0 2.0 1.3
CR1625 3.0 90 2.0 0.3 8 16.0 2.5 1.8
CR1632 3.0 120 2.0 0.3 10 16.0 3.2 2.3
CR2016 3.0 75 2.0 0.3 10 20.0 1.6 1.7
CR2025 3.0 150 2.0 0.5 15 20.0 2.5 2.4
CR2032 3.0 210 2.0 0.75 15 20.0 3.2 3.0
CR2320 3.0 130 2.0 0.75 15 23.0 2.0 4.0
CR2330 3.0 260 2.0 0.75 15 23.0 3.0 4.0
CR2354 3.0 530 2.0 1 15 23.0 5.4 5.8
CR2430 3.0 270 2.0 1 15 24.5 3.0 4.5
CR2450 3.0 550 2.0 1
5 24.5 5.0 6.5
CR2477 3.0 950 2.0 1 15 24.5 7.7 9.5
CR3032 3.0 580 2.0 1 15 30.0 3.2 6.8
CR123A 3.0 1300 2.0 1500 3000 17.0 33.5  16
