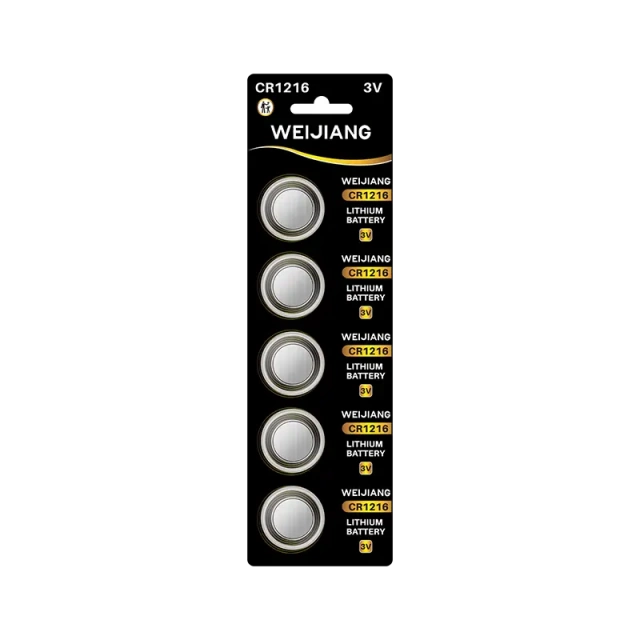

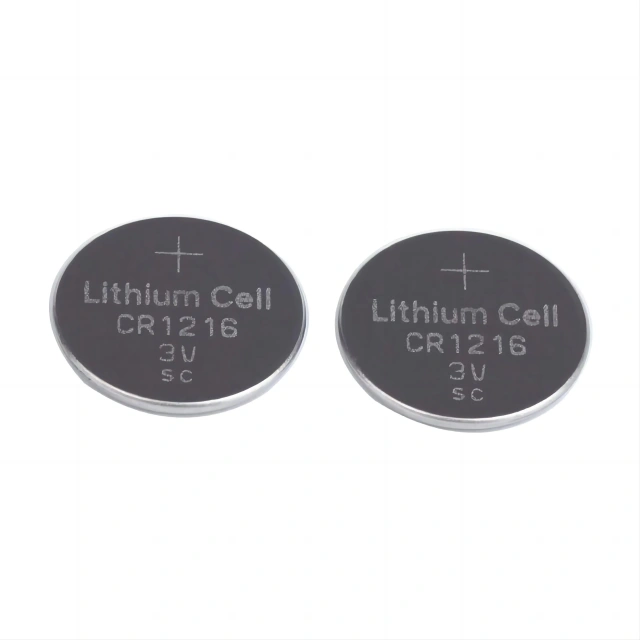

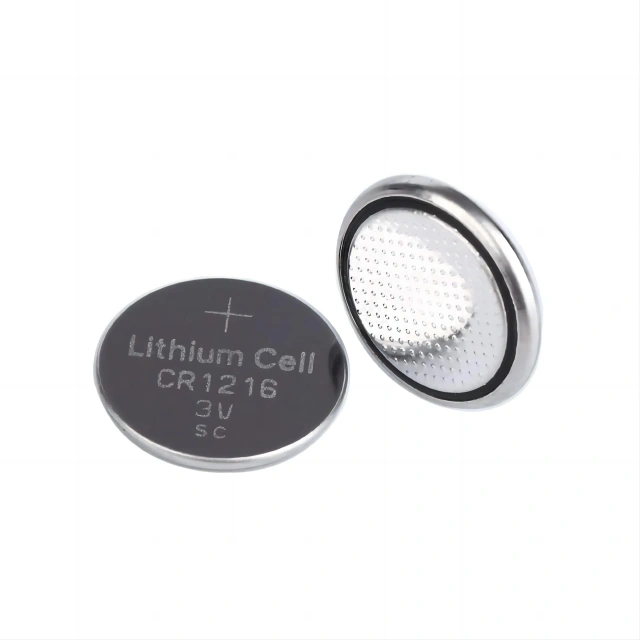

The CR1216 lithium coin cell battery is a compact, high-performance 3V button battery, designed for small electronic devices requiring long-lasting and stable power. With a diameter of 12.5mm and a thickness of 1.6mm, this battery fits slim and compact devices, ensuring efficient energy output.
Powered by Lithium Manganese Dioxide (Li-MnO2) chemistry, the CR1216 battery delivers a steady 3V voltage with a 25mAh capacity, making it an ideal choice for calculators, car remotes, medical devices, digital watches, and fitness gadgets. Its low self-discharge rate and wide operating temperature range ensure durability and reliability over an extended lifespan.
Key Features:✔ Reliable 3V Power Supply – Delivers consistent and stable energy output. Technical Specifications:🔋 Battery Model: CR1216 Applications:📌 Digital watches & fitness trackers |
||||||||
| Model | Nominal Voltage (V) |
Standard Capacity (mAh) |
Termination Voltage (V) | Maximum Continuous Current (mA) | Maximum Pulse Current(mA) | Diameter (mm) |
Height (mm) |
Weight of Unit Cell (g) |
| CR927 | 3.0 | 30 | 2.0 | 0.2 | 5 | 9.5 | 2.7 | 0.6 |
| CR1025 | 3.0 | 30 | 2.0 | 0.2 | 5 | 10.0 | 2.5 | 0.8 |
| CR1130 | 3.0 | 40 | 2.0 | 0.2 | 5 | 11.6 | 3.0 | 1.0 |
| CR1212 | 3.0 | 18 | 2.0 | 0.2 | 5 | 12.5 | 1.2 | 0.6 |
| CR1216 | 3.0 | 25 | 2.0 | 0.2 | 5 | 12.5 | 1.6 | 0.7 |
| CR1220 | 3.0 | 40 | 2.0 | 0.2 | 5 | 12.5 | 2.0 | 0.8 |
| CR1225 | 3.0 | 48 | 2.0 | 0.2 | 5 | 12.5 | 2.5 | 0.9 |
| CR1616 | 3.0 | 50 | 2.0 | 0.3 | 8 | 16.0 | 1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 2.0 | 0.3 | 8 | 16.0 | 2.0 | 1.3 |
| CR1625 | 3.0 | 90 | 2.0 | 0.3 | 8 | 16.0 | 2.5 | 1.8 |
| CR1632 | 3.0 | 120 | 2.0 | 0.3 | 10 | 16.0 | 3.2 | 2.3 |
| CR2016 | 3.0 | 75 | 2.0 | 0.3 | 10 | 20.0 | 1.6 | 1.7 |
| CR2025 | 3.0 | 150 | 2.0 | 0.5 | 15 | 20.0 | 2.5 | 2.4 |
| CR2032 | 3.0 | 210 | 2.0 | 0.75 | 15 | 20.0 | 3.2 | 3.0 |
| CR2320 | 3.0 | 130 | 2.0 | 0.75 | 15 | 23.0 | 2.0 | 4.0 |
| CR2330 | 3.0 | 260 | 2.0 | 0.75 | 15 | 23.0 | 3.0 | 4.0 |
| CR2354 | 3.0 | 530 | 2.0 | 1 | 15 | 23.0 | 5.4 | 5.8 |
| CR2430 | 3.0 | 270 | 2.0 | 1 | 15 | 24.5 | 3.0 | 4.5 |
| CR2450 | 3.0 | 550 | 2.0 | 1 |
5 | 24.5 | 5.0 | 6.5 |
| CR2477 | 3.0 | 950 | 2.0 | 1 | 15 | 24.5 | 7.7 | 9.5 |
| CR3032 | 3.0 | 580 | 2.0 | 1 | 15 | 30.0 | 3.2 | 6.8 |
| CR123A | 3.0 | 1300 | 2.0 | 1500 | 3000 | 17.0 | 33.5 | 16 |
FAQs – CR1216 Lithium Coin Battery1. What devices use the CR1216 battery?The CR1216 battery is widely used in digital watches, remote controls, calculators, medical devices, and fitness trackers. 2. What is the voltage of a CR1216 battery?The CR1216 battery provides a nominal voltage of 3.0V, ensuring stable power for various devices. 3. How long does a CR1216 battery last?The lifespan varies by device but typically lasts 1 to 3 years. In storage, it retains power for 5-10 years due to its low self-discharge rate. 4. Is the CR1216 battery rechargeable?No, the CR1216 is a non-rechargeable lithium coin cell. Attempting to recharge it can cause damage or leakage. 5. What is the capacity of a CR1216 battery?The CR1216 battery has a capacity of 25mAh, making it suitable for low-power devices. 6. What are the dimensions of a CR1216 battery?
7. Can I replace a CR1216 battery with another type?While CR1216 is the preferred size, some devices may accept CR1220 or CR1225 as alternatives. Always check device compatibility. 8. Is the CR1216 battery safe to use?Yes, it is leak-proof and safe, but keep away from children, as coin batteries can be hazardous if swallowed. 9. How should I store CR1216 batteries?Store in a cool, dry place, away from heat and direct sunlight, to maximize shelf life. 10. Do you offer bulk orders for CR1216 batteries?Yes! Weijiang provides bulk purchase options and OEM/ODM services. Contact us for wholesale inquiries and custom branding. |
