WEIJIANG-Professional Ni-MH Rechargeable and Alkaline Batteries Manufacturer

High Capacity LR41 – Tenergy’s 1.5 volt LR41 button cell battery is power-packed in a small size ideal for electronics such as thermometers, watches, laser pointers, medical devices, calculators, small radios, key fobs, small toys, and portable electronics.

Performance -A low internal resistance enables these batteries to provide long-lasting energy for small electronics.

Different Name Same Battery – Replaces silver oxide batteries and is similar size as AG3 LR41 1134SO 125/D LB192 A63 247 247B 247D 280-13 280-18 325 LB41 392/2 392/384 392A 392BP 392X 736 92A AG-3 AG03 AG3 ASG3 CX41 D384 D384/392 D392 E392 G3 G3A GP192 GP392 GP392-A1 GP92A K L736 L736C L736F L736H L736S LR41 LR4192 LR41H LR736 R384/10 RW47 RW47S RW87 S736E S736S SB-A1/D1 SB-B1 SG3 SP384 SP392 SR41 SR41/SW SR415W SR41SW SR41W SR736 SR736PW SR736SW SR736W TR41SW V36A V384 V392 V3GA

  • AG3 1.5 Volt Alkaline Button Cell Watch Battery | Weijiang Power
  • AG3 1.5 Volt Alkaline Button Cell Watch Battery | Weijiang Power
  • AG3 1.5 Volt Alkaline Button Cell Watch Battery | Weijiang Power
Description

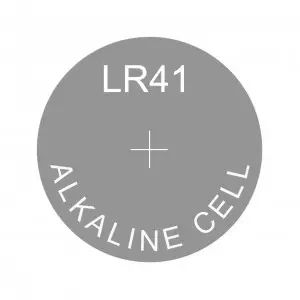

Alkaline Manganese Batteries-LR41 AG3

Feature Description
Nominal Voltage 1.50 V
Capacity 25–32 mAh
OperatingTemperature 0 – 60°C
Diameter 7.9 mm
Height 3.6 mm
Composition Alkaline
Rechargable No

*Excellent storage performance and low self-discharge rate.

* Environment hazards: Ingredients contained or their ingredients products could be harmful to the environment.

* Burn & burst danger: If heated strongly by the surrounding fire, acrid gas and flammable gas may be emitted and may explode dangerously.

* We can do package in Tray and blister card,50pcs/tray,2pcs/card ,5pcs/card,10pcs/card.

* It's no Hg, Pb, Cd, or Untra environmentally friendly button cell battery.



Specification for Alkaline Button Batteries:

The list of Alkaline Button batteries below is only for reference. Other options are also available.
Customized Alkaline / NiMH batteries and battery packs are available. CONTACT US for more detailed information. We have rich experience from battery concept to production, seamlessly and on-budget.
Let Weijiang Be Your Battery Pack Manufacturer!



 Other Models

Item No.

Other Names

Volt

Capacity (mAH)

Size Dia*H. (mm)

Weight (g)

Ω

 Off Voltage(V)

Shelf life

AG0

LR63/179/521

1.5

10

5.75×2.1

0.20

68k

 0.9

 2years

AG1

LR60/164/621

1.5

13

6.75×2.1

0.28

68k

 0.9

 2years

AG2

LR59/106/726

1.5

28

7.85×2.6

0.47

22k

 0.9

 2years

AG3

LR41/192

1.5

35

7.85×3.5

0.64

22k

 0.9

 2years

AG4

LR66/177/626

1.5

18

6.75×2.5

0.32

47k

0.9

2years

AG5

LR48/193/754

1.5

60

7.90×5.4

0.90

22k

0.9

2years

AG6

LR69/171/920

1.5

32

9.40×2.1

0.55

15k

0.9

2years

AG7

LR57/195/927

1.5

42

9.40×2.5

0.64

15k

0.9

2years

AG8

LR55/191/L1120

1.5

45

11.50×2.1

0.79

15k

0.9

2years

AG9

LR45/194/936A

1.5

45

9.40×3.5

0.86

15k

0.9

2years

AG10

LR54/189/L1130

1.5

70

11.5×3.1

1.18

15k

0.9

2years

AG11

LR58/162 /721

1.5

20

7.85×2.1

0.38

7.5k

0.9

2years

AG12

LR43/186

1.5

100

11.50×4.1

1.47

7.5k

0.9

2years

AG13

LR44/A76

1.5

145

11.50×5.4

1.96

7.5k

0.9

2years
