AG10/LR54 Miniature Alkaline Button Cell Batteries| Weijiang Power

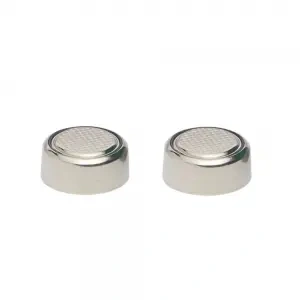

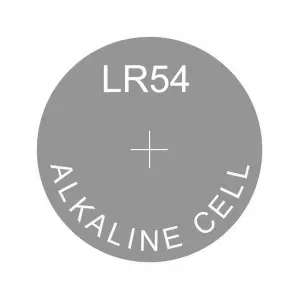

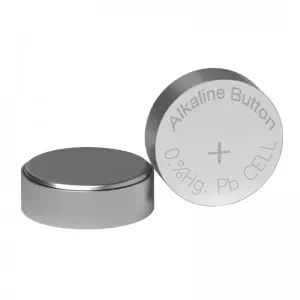

The Weijiang LR1130 battery is an Alkaline button cell battery.

The LR1130 battery has an operating temperature ranging from 0°C- 60°C, while the optimal temperature is 20°C. These alkaline batteries stand for durability, high capacity, highest energy density and reliability. They help to provide reliable performance, high efficiency, and a long service life.

The LR1130 battery can be utilized in many devices, such as watches, electronic toys, remote controls, and calculators. LR1130 battery equivalents are also referred to as AG10, D189, D389, D390, G10, G10A,1159SO, 1168A, 189, 189-1, 280-15, 280-24, 389, 389A, 389BP, 390, 390A, 534, 554, 603, 615, 626, GP189, GP389, GP390, KA54, L1131, LR1130, LR54, R 389/17, R 390/11, RW 39, RW 49, RW49, RW89, S1131S, SG10, SP390, SR1130, SR1130SW, SR1130W, SR54, V389, V390, and WL10. Contains no mercury. Actual product packaging and materials may contain more and different information than what is shown on our website.

  • AG10/LR54 Miniature Alkaline Button Cell Batteries| Weijiang Power
  • AG10/LR54 Miniature Alkaline Button Cell Batteries| Weijiang Power
  • AG10/LR54 Miniature Alkaline Button Cell Batteries| Weijiang Power
  • AG10/LR54 Miniature Alkaline Button Cell Batteries| Weijiang Power
Description


Alkaline Manganese Batteries-LR1130

1.5V Super alkaline button cell AG10
Model: AG10 LR54
Capacity: 70mAh
Shelf life: 2 years
Dimension: 11.5*3.1mm
Application: watches, calculators, toys, lights, keys, microdevices, etc

Product Features

Non-Toxic And Eco-friendly
All our cylindrical and button alkaline batteries are free from toxic chemicals (mercury, lead, cadmium), which makes disposing of them easy, quick and safe. They can be discarded with regular domestic waste, lessening their environmental impact.

Robust And Long-lasting
Our button batteries are made in an automated manufacturing process. As a result, we produce batteries that are highly resistant to shock and vibrations and have a guaranteed lifespan of 3 years.

Adaptable And High-performing
No one battery fits all. We offer different sizes and grades of cylindrical and button batteries to suit every device, drain level and customer and ensure the best possible performance at all temperatures (-20°C to +54°C) and locations (indoor or outdoor).

Datasheet_LR1130-1



Datasheet_LR1130-2

Specification for Alkaline Button Batteries:

The list of Alkaline Button batteries below is only for reference. Other options are also available.
Customized Alkaline / NiMH batteries and battery packs are available, CONTACT US for more detailed information. We have rich experience from battery concept to production, seamlessly and on-budget.
Let Weijiang Be Your Battery Pack Manufacturer!

Item No.

Other Names

Volt

Capacity (mAH)

Size Dia*H. (mm)

Weight (g)

Ω

 Off Voltage(V)

Shelf life

AG0

LR63/179/521

1.5

10

5.75×2.1

0.20

68k

 0.9

 2years

AG1

LR60/164/621

1.5

13

6.75×2.1

0.28

68k

 0.9

 2years

AG2

LR59/106/726

1.5

28

7.85×2.6

0.47

22k

 0.9

 2years

AG3

LR41/192

1.5

35

7.85×3.5

0.64

22k

 0.9

 2years

AG4

LR66/177/626

1.5

18

6.75×2.5

0.32

47k

0.9

2years

AG5

LR48/193/754

1.5

60

7.90×5.4

0.90

22k

0.9

2years

AG6

LR69/171/920

1.5

32

9.40×2.1

0.55

15k

0.9

2years

AG7

LR57/195/927

1.5

42

9.40×2.5

0.64

15k

0.9

2years

AG8

LR55/191/L1120

1.5

45

11.50×2.1

0.79

15k

0.9

2years

AG9

LR45/194/936A

1.5

45

9.40×3.5

0.86

15k

0.9

2years

AG10

LR54/189/L1130

1.5

70

11.5×3.1

1.18

15k

0.9

2years

AG11

LR58/162 /721

1.5

20

7.85×2.1

0.38

7.5k

0.9

2years

AG12

LR43/186

1.5

100

11.50×4.1

1.47

7.5k

0.9

2years

AG13

LR44/A76

1.5

145

11.50×5.4

1.96

7.5k

0.9

2years
