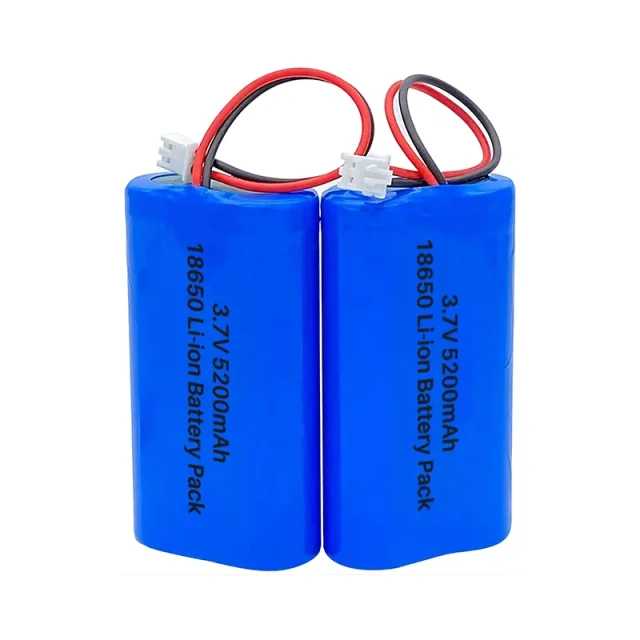

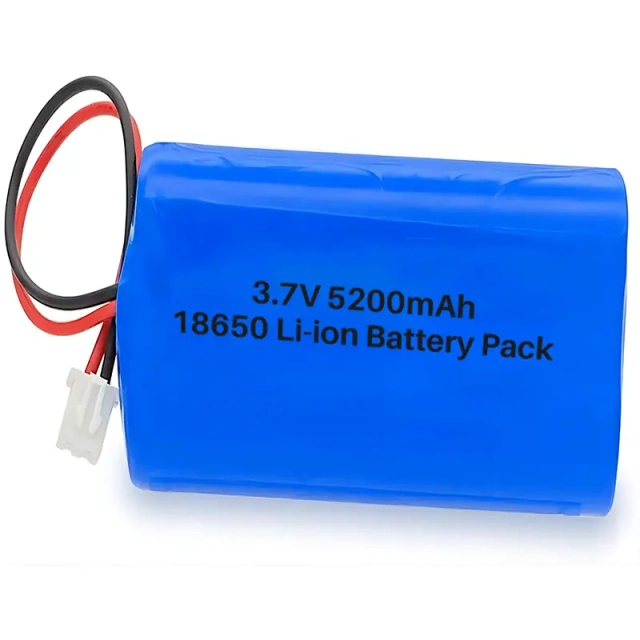

3.7V 5200mAh 18650 Li-ion Battery Pack for Surgical Light

Cell type: 18650 Li-ion Battery 3.7V 2600mAh
Configuration1S2P
Voltage & Capacity: 3.7V 5200mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 3.7V 5200mAh 18650 Li-ion Battery Pack for Surgical Light
  • 3.7V 5200mAh 18650 Li-ion Battery Pack for Surgical Light
Description

Key Features of 18650 Li-ion Battery Pack for Surgical Light:

Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs


Specification of 18650 Li-ion Battery Pack for Surgical Light:

Type Parameters
Nominal voltage  3.7V
Rated capacity 5200mAh (0.2C discharge)
Continuous working current 1-4A
Overcurrent protection value 21-26A
Suitable device power ≤19.2W
Overcharge protection voltage 4.25 ± 0.025V/Cell (optional)
Discharge protection voltage 2.50 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 4.225-4.275V
Charge current 1-2.6A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >100g
