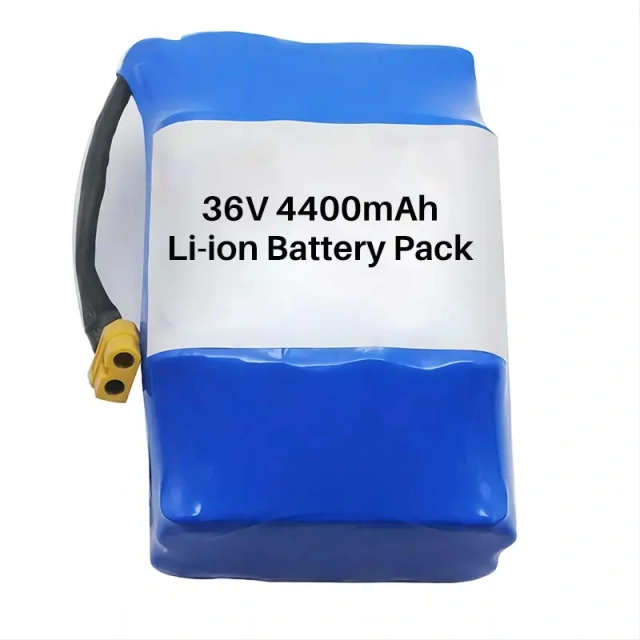

36V 4400mAh Li-ion Battery Pack for E-skates

Cell type: 18650 3.7v 2200mAh
Configuration: 10S2P
Voltage & Capacity: 36V 4.4Ah
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.

  • 36V 4400mAh Li-ion Battery Pack for E-skates
  • 36V 4400mAh Li-ion Battery Pack for E-skates
Description

Key Features of Li-ion Battery Pack for E-skates:

  • Reliable & safe performance, long cycle life
  • Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
  • Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
  • Multiple parallel and series combinations and intelligent modular battery designs are possible
  • We can provide OEM/ODM battery pack services for your battery packs needs


Specification of Li-ion Battery Pack for E-skates:

Type Parameters
Nominal voltage 36V
Rated capacity 4.4Ah (0.2C discharge)
Continuous working current 3A
Overcurrent protection value 5-10A
Suitable device power ≤360W
Overcharge protection voltage 4.25 ± 0.025V/Cell (optional)
Discharge protection voltage 2.50 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 42V
Charge current 2A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH

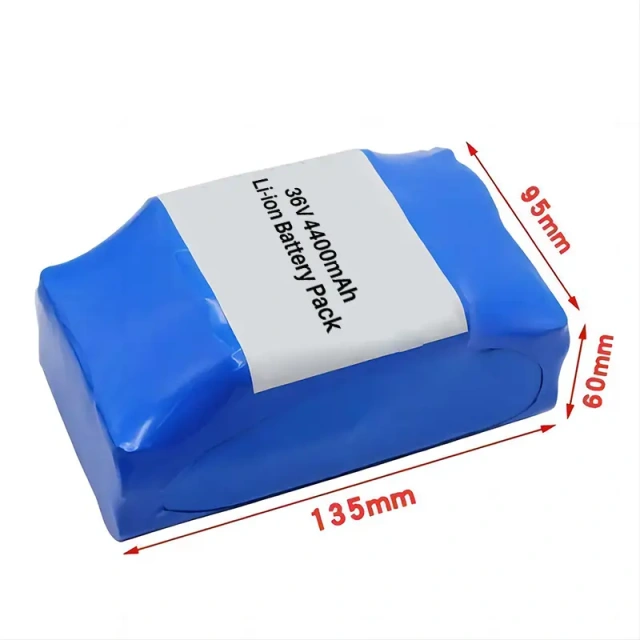

Dimensions Refer to sample
Weight <1000g
