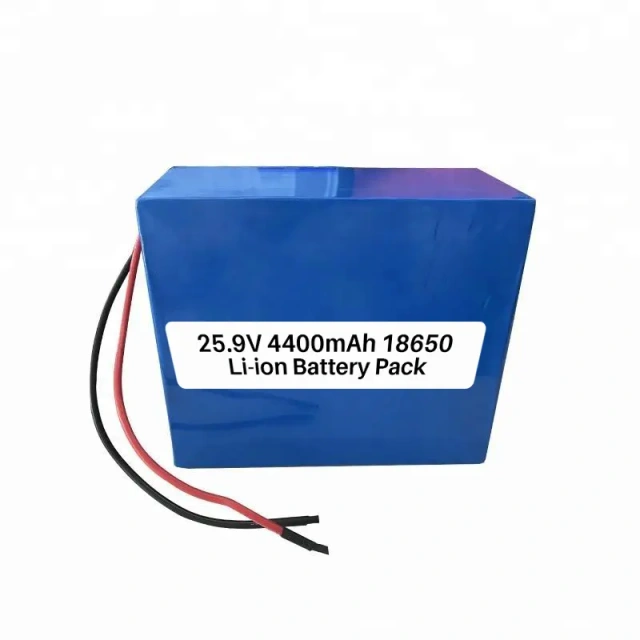

25.9V 4400mAh 18650 Li-ion Battery Pack

Cell type: Li-ion Battery 18650 3.7v 2200mAh
Configuration: 7S2P
Voltage capacity: 25.9V 4.4Ah
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 25.9V 4400mAh 18650 Li-ion Battery Pack
  • 25.9V 4400mAh 18650 Li-ion Battery Pack
Description

Key Features of 24V 4400mAh 18650 Li-ion Battery Pack:

Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection system (PCM/BMS)
Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs


Specification of 24V 4400mAh 18650 Li-ion Battery Pack:

Type Parameters
Nominal voltage 24V
Rated capacity 4400mAh (0.2C discharge)
Continuous working current 1-2A
Overcurrent protection value 10A
Suitable device power ≤40W
Overcharge protection voltage 4.20V + / - 0.25V/Cell (optional)
Discharge protection voltage 2.50V + / - 0.25V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 29.40-30.10V
Charge current 2.0A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >750g
