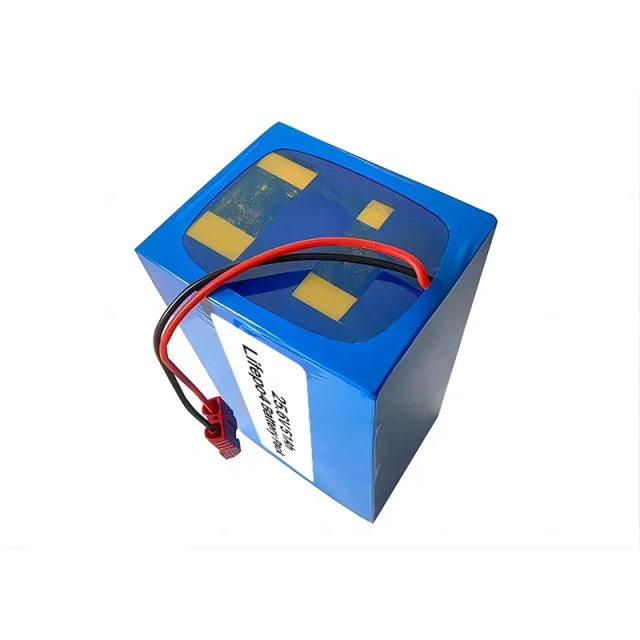

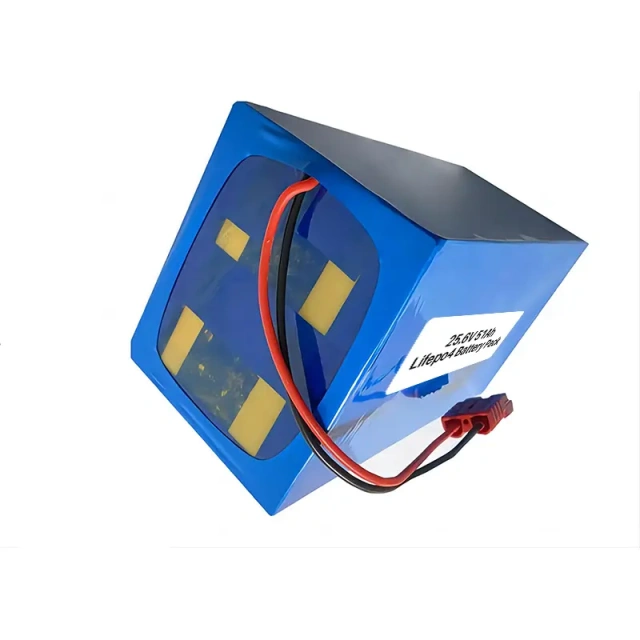

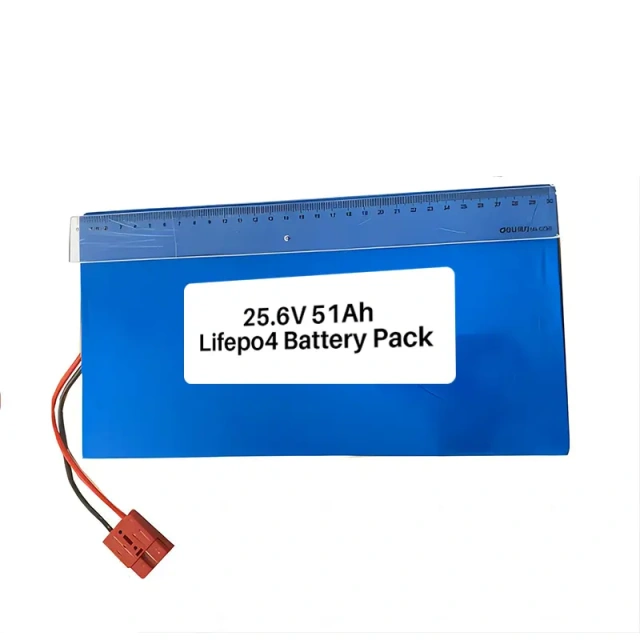

25.6V 51Ah Lifepo4 Battery Pack for Lights

Cell type: 26650 Lifepo4 Battery 3.2v 3200mAh
Configuration: 8S16P
Voltage & Capacity: 25.6V 51Ah
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 25.6V 51Ah Lifepo4 Battery Pack for Lights
  • 25.6V 51Ah Lifepo4 Battery Pack for Lights
  • 25.6V 51Ah Lifepo4 Battery Pack for Lights
Description

Key Features of Lifepo4 Battery Pack for Lights:

  • Reliable & safe performance, long cycle life
  • Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
  • Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
  • Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
  • Multiple parallel and series combinations and intelligent modular battery designs are possible
  • We can provide OEM/ODM battery pack services for your scanner needs


Specification of Lifepo4 Battery Pack for Lights:

Type Parameters
Nominal voltage 25.6V
Rated capacity 51Ah (0.2C discharge)
Continuous working current 8-30A
Overcurrent protection value 15-70A
Suitable device power ≤300W
Overcharge protection voltage 3.6±0.025V/Cell (optional)
Discharge protection voltage 2.0±0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 3.625-3.675V
Charge current 3-10A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >5kg
