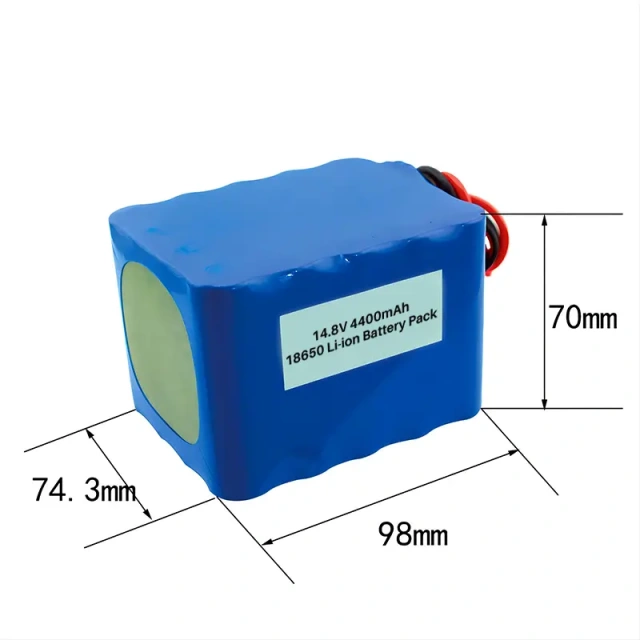

14.8V 4400mAh 18650 Li-ion Battery Pack for Medical Devicess

Cell type: 18650 Li-ion Battery 3.7v 2200mAh
Configuration: 4S2P
Voltage & Capacity: 14.8V 4400mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 14.8V 4400mAh 18650 Li-ion Battery Pack for Medical Devicess
  • 14.8V 4400mAh 18650 Li-ion Battery Pack for Medical Devicess
Description

Key Features of  Lithium Battery Pack for Scanner Survey:

  • Reliable & safe performance, long cycle life
  • Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
  • Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
  • Multiple parallel and series combinations and intelligent modular battery designs are possible
  • We can provide OEM/ODM battery pack services for your scanner needs


Specification of  Lithium Battery Pack for Scanner Survey:

Type Parameters
Nominal voltage 14.8V
Rated capacity 4400mAh (0.2C discharge)
Continuous working current 1-3A
Overcurrent protection value 20.8-26A (adjustable)
Suitable device power ≤76.9W
Overcharge protection voltage 4.25 ± 0.025V /Cell (optional)
Discharge protection voltage 2.50 ± 0.025V /Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 16.90-17.10V
Charge current 1.1-2.6A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >400g
