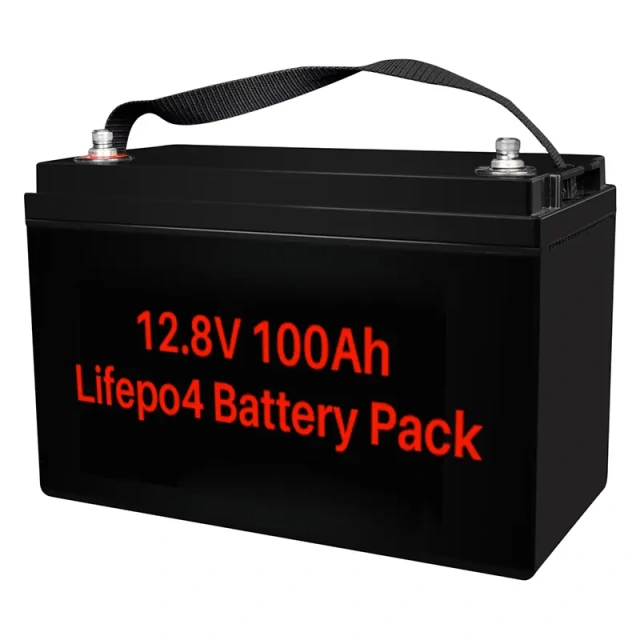

12.8V 100Ah Lifepo4 Battery Pack for Solar Power

Cell type: Li-ion Battery26650 3.2v 3000mAh
Configuration: 4S33P
Voltage & Capacity: 12.8V 100Ah
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 12.8V 100Ah Lifepo4 Battery Pack for Solar Power
  • 12.8V 100Ah Lifepo4 Battery Pack for Solar Power
Description

Key Features of Li-ion Battery Pack for Solar Power:

  • Reliable & safe performance, long cycle life
  • Uses the most advanced chips from Japan and the United States for Protection system (PCM/BMS)
  • Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
  • Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
  • Multiple parallel and series combinations and intelligent modular battery designs are possible
  • We can provide OEM/ODM battery pack services for your needs


Specification of Li-ion Battery Pack for Solar Power:

Type Parameters
Nominal voltage 12.8V
Rated capacity 100Ah (0.2C discharge)
Continuous working current 8-15A
Overcurrent protection value 15-30A (adjustable)
Suitable device power ≤300W
Overcharge protection voltage 3.6±0.025V/Cell (optional)
Discharge protection voltage 2.0 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 3.625-3.675V
Charge current 3-10A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions  300mm*160mm*130mm
Weight >1Kg
