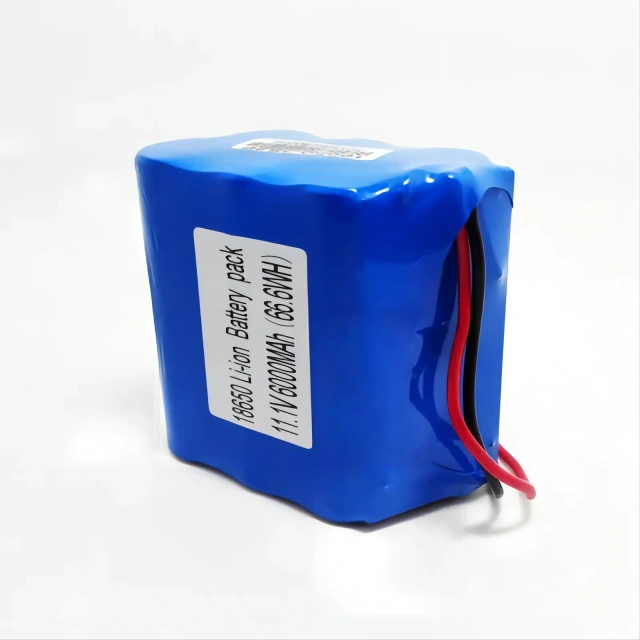

11.1V 6Ah 18650 Li-ion Battery Pack for Radiodetection Machine

Cell type: 18650 Li-ion Battery 3.7v 3500mAh
Configuration: 3S2P
Voltage & Capacity: 11.1V 6000mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.
  • 11.1V 6Ah 18650 Li-ion Battery Pack for Radiodetection Machine
  • 11.1V 6Ah 18650 Li-ion Battery Pack for Radiodetection Machine
Description

Key Features of 18650 Li-ion Battery Pack for Radiodetection Machine:

Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
Applications: Metal detector, pipe locator, and others.
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs


Specification of 18650 Li-ion Battery Pack for Radiodetection Machine:

Type Parameters
Nominal voltage 11.1V
Rated capacity 6000mAh (0.2C discharge)
Continuous working current 1-3A
Overcurrent protection value 20.8-26A
Suitable device power ≤57.7W
Overcharge protection voltage 4.25V ± 0.025V/Cell (optional)
Discharge protection voltage 2.50 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 12.60-12.90V
Charge current 1.0-2.6A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >300g
