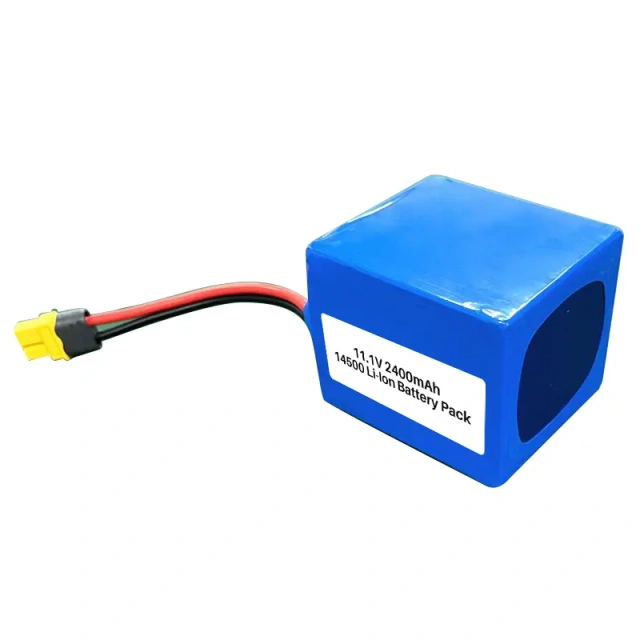

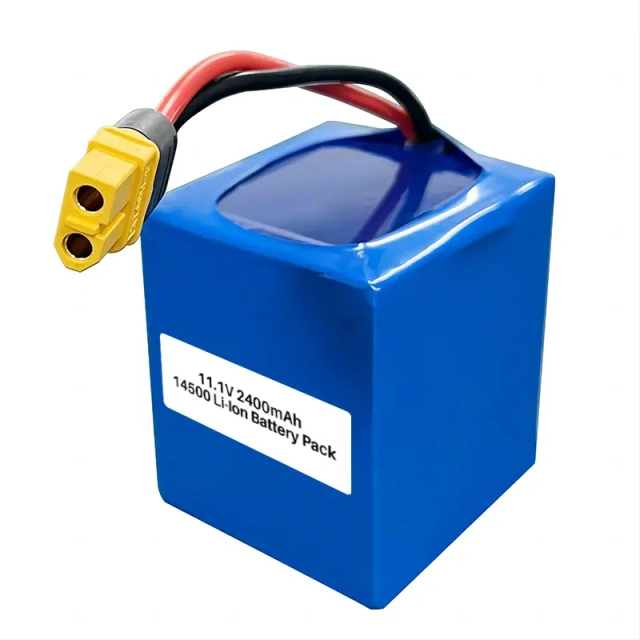

11.1V 2400mAh 14500 Li-Ion Battery Pack

Cell type: Li-ion Battery 14500 3.7v 800mAh
Configuration: 3S3P
Voltage & Capacity: 11.1V 2400mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.

  • 11.1V 2400mAh 14500 Li-Ion Battery Pack
  • 11.1V 2400mAh 14500 Li-Ion Battery Pack
  • 11.1V 2400mAh 14500 Li-Ion Battery Pack
Description

Key Features of 11.1V 2400mAh 14500 Li-Ion Battery Pack:


Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection system (PCM/BMS)
Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs


Specification of 11.1V 2400mAh 14500 Li-Ion Battery Pack:

Type Parameters
Nominal voltage 11.1V
Rated capacity 2400mAh (0.2C discharge)
Continuous working current 0.5-1A
Overcurrent protection value 1-2A (adjustable)
Suitable device power ≤25W
Overcharge protection voltage 4.25 ± 0.025V/Cell (optional)
Discharge protection voltage 2.50 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 4.225-4.275V
Charge current 0.4-1.1A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions 45mm*45mm*51mm
Weight ≤200g
