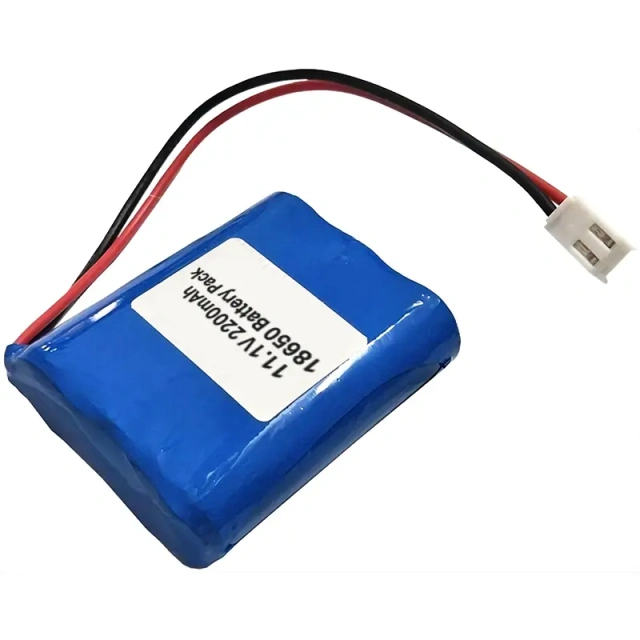

Specification of 18650 Battery Pack for Infusion Pump:
|
| Type |
Parameters |
| Nominal voltage |
11.1V |
| Rated capacity |
2200mAh (0.2C discharge) |
| Continuous working current |
1-3A |
| Overcurrent protection value |
8.8-11A |
| Suitable device power |
≤24W |
| Overcharge protection voltage |
4.25 ± 0.025V / Cell (optional) |
| Discharge protection voltage |
2.50 ± 0.025V / Cell (optional) |
| Charge mode |
Constant current, constant voltage |
| Charge voltage |
12.60-12.90V |
| Charge current |
0.45-1.1A |
| Charge temperature |
0~45℃、45~85%RH |
| Discharge temperature |
-20~55℃、45~85%RH |
| Storage temperature and humidity range |
Short term (Over 1 month): -20~+55℃、45~85%RH |
| Medium term (Over 3 months):-20~+45℃、45~85%RH |
| Long term (Within 1 year): -5~+20℃、45~85%RH |
| Dimensions |
Refer to sample |
| Weight |
<155g |
