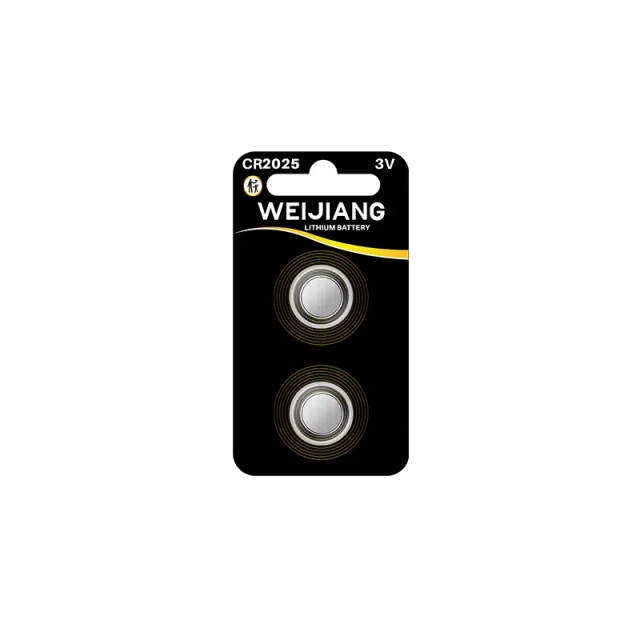

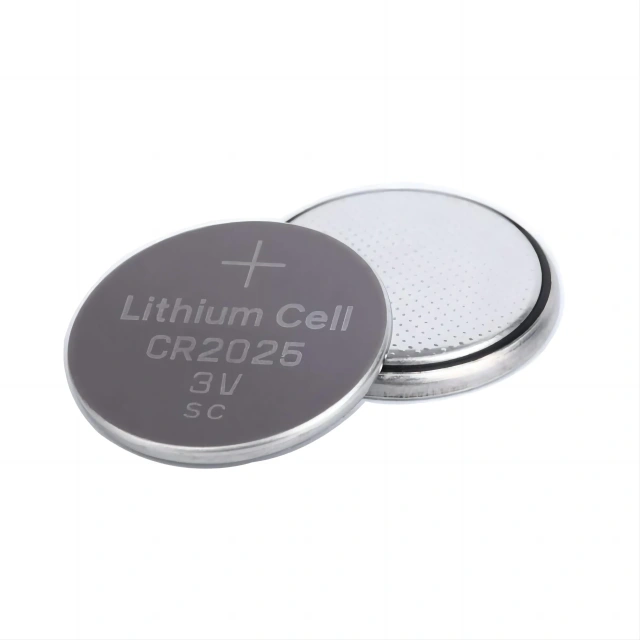

The CR2025 lithium coin cell battery is a high-performance, compact power source widely used in small electronic devices. With a diameter of 20mm and a thickness of 2.5mm, this non-rechargeable battery delivers a nominal voltage of 3V and a capacity of approximately 160mAh, making it perfect for devices requiring stable and long-lasting power.
Using Lithium Manganese Dioxide (Li-MnO2) chemistry, the CR2025 battery ensures low self-discharge, excellent temperature resistance, and reliable performance over an extended period. It is commonly used in car key fobs, wristwatches, remote controls, medical devices, and fitness trackers.
Key Features:✔ 3V Nominal Voltage – Provides stable and efficient power. Technical Specifications:🔋 Battery Model: CR2025 Applications:📌 Car Key Fobs & Remote Controls The CR2025 lithium coin cell battery is a reliable and efficient energy solution, ensuring consistent performance for a variety of everyday devices.
|
||||||||
| Model | Nominal Voltage (V) |
Standard Capacity (mAh) |
Termination Voltage (V) | Maximum Continuous Current (mA) | Maximum Pulse Current(mA) | Diameter (mm) |
Height (mm) |
Weight of Unit Cell (g) |
| CR927 | 3.0 | 30 | 2.0 | 0.2 | 5 | 9.5 | 2.7 | 0.6 |
| CR1025 | 3.0 | 30 | 2.0 | 0.2 | 5 | 10.0 | 2.5 | 0.8 |
| CR1130 | 3.0 | 40 | 2.0 | 0.2 | 5 | 11.6 | 3.0 | 1.0 |
| CR1212 | 3.0 | 18 | 2.0 | 0.2 | 5 | 12.5 | 1.2 | 0.6 |
| CR1216 | 3.0 | 25 | 2.0 | 0.2 | 5 | 12.5 | 1.6 | 0.7 |
| CR1220 | 3.0 | 40 | 2.0 | 0.2 | 5 | 12.5 | 2.0 | 0.8 |
| CR1225 | 3.0 | 48 | 2.0 | 0.2 | 5 | 12.5 | 2.5 | 0.9 |
| CR1616 | 3.0 | 50 | 2.0 | 0.3 | 8 | 16.0 | 1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 2.0 | 0.3 | 8 | 16.0 | 2.0 | 1.3 |
| CR1625 | 3.0 | 90 | 2.0 | 0.3 | 8 | 16.0 | 2.5 | 1.8 |
| CR1632 | 3.0 | 120 | 2.0 | 0.3 | 10 | 16.0 | 3.2 | 2.3 |
| CR2016 | 3.0 | 75 | 2.0 | 0.3 | 10 | 20.0 | 1.6 | 1.7 |
| CR2025 | 3.0 | 150 | 2.0 | 0.5 | 15 | 20.0 | 2.5 | 2.4 |
| CR2032 | 3.0 | 210 | 2.0 | 0.75 | 15 | 20.0 | 3.2 | 3.0 |
| CR2320 | 3.0 | 130 | 2.0 | 0.75 | 15 | 23.0 | 2.0 | 4.0 |
| CR2330 | 3.0 | 260 | 2.0 | 0.75 | 15 | 23.0 | 3.0 | 4.0 |
| CR2354 | 3.0 | 530 | 2.0 | 1 | 15 | 23.0 | 5.4 | 5.8 |
| CR2430 | 3.0 | 270 | 2.0 | 1 | 15 | 24.5 | 3.0 | 4.5 |
| CR2450 | 3.0 | 550 | 2.0 | 1 |
5 | 24.5 | 5.0 | 6.5 |
| CR2477 | 3.0 | 950 | 2.0 | 1 | 15 | 24.5 | 7.7 | 9.5 |
| CR3032 | 3.0 | 580 | 2.0 | 1 | 15 | 30.0 | 3.2 | 6.8 |
| CR123A | 3.0 | 1300 | 2.0 | 1500 | 3000 | 17.0 | 33.5 | 16 |
FAQs – CR2025 Lithium Coin Battery1. What devices use the CR2025 battery?The CR2025 battery is widely used in car key fobs, wristwatches, remote controls, medical devices, fitness trackers, and small electronic toys. 2. What is the voltage of a CR2025 battery?The CR2025 battery has a nominal voltage of 3.0V, ensuring stable power delivery. 3. How long does a CR2025 battery last?Battery life varies by usage, but with a capacity of 160mAh, it provides long-lasting power for low-drain devices and has a shelf life of up to 10 years. 4. Is the CR2025 battery rechargeable?No, the CR2025 is a non-rechargeable lithium coin cell. Attempting to recharge it may cause damage or leakage. 5. What are the dimensions of a CR2025 battery?
6. Can I replace a CR2025 battery with another type?A CR2032 battery can sometimes be used as a substitute, but it is thicker (3.2mm vs. 2.5mm), so ensure your device can accommodate the size difference. 7. Is the CR2025 battery safe to use?Yes, it is leak-resistant and built with safety protections. However, keep it away from children, as small coin batteries can be hazardous if swallowed. 8. How should I store CR2025 batteries?Store in a cool, dry place, away from direct sunlight and heat, to maximize shelf life. 9. Do you offer bulk orders for CR2025 batteries?Yes! Weijiang provides bulk purchasing and OEM/ODM services. Contact us for wholesale inquiries and private labeling. |
