WEIJIANG-Professional Ni-MH Rechargeable and Alkaline Batteries Manufacturer
Equivalent to: 1176SO, 177, 280-39, 280-72, 376, 377, 377A, 377BP, 43, 565, 606, 619, 626A, AG4, BA, CX626, CX66W, D 377, D377, G4, G4A, G4A177, GP376, GP377, L626, LR626, LR66, MA, R 377/37, RW 329, S32, S626S, SB-AW, SG4, SP376, SP377, SP379, SR 626 SW, SR 66, SR626, SR626SW, SR626SW/W, SR626W, SR66, TR626W, V376, V377.
Used in: watches, toys, glucose monitors, calculators, laser pointers, cameras, alarm transmitters, Rescue heroes, Blood Pressure Instruments, Sugar Level Detectors, and many more.
If you need more help with purchasing our alkaline batteries, please call our customer service department at +8618928371456 or email us.

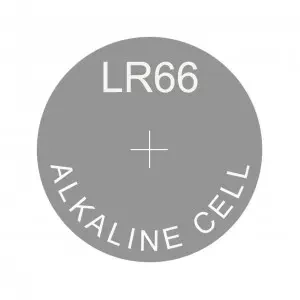

Alkaline Manganese Batteries-AG4 / 376 / 377 / LR66 |
||
| Chemistry | Alkaline | Silver-Oxide |
| Nominal Voltage | 1.5V | 1.55V |
| End-Point Voltage | 1.0V | 1.2V |
| Notes | Voltage drops over time | Very constant voltage |
| Typical Labels | LR66, LR626, AG4 | 177, 376, 377, AG4, SG4, SR66, SR626, SR626SW |
| Typical Capacity | 15-17 mAh | 25-27 mAh |
|

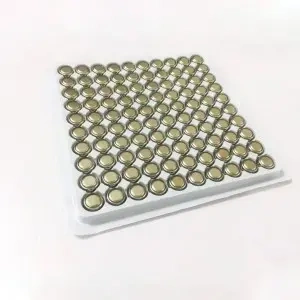

*Excellent storage performance and low self-discharge rate. * Environment hazards: Ingredients contained or their ingredients products could be harmful to the environment. * Burn & burst danger: If heated strongly by the surrounding fire, acrid gas and flammable gas may be emitted and may explode dangerously. * We can do package in Tray and blister card,50pcs/tray,2pcs/card ,5pcs/card,10pcs/card. * It's no Hg, Pb, Cd, or Ultra environmentally friendly button cell battery.
Specification for Alkaline Button Batteries: The list of Alkaline Button batteries below is only for reference. Other options are also available.
Other Models |
Item No. |
Other Names |
Volt |
Capacity (mAH) |
Size Dia*H. (mm) |
Weight (g) |
Ω |
Off Voltage(V) |
Shelf life |
AG0 |
LR63/179/521 |
1.5 |
10 |
5.75×2.1 |
0.20 |
68k |
0.9 |
2years |
AG1 |
LR60/164/621 |
1.5 |
13 |
6.75×2.1 |
0.28 |
68k |
0.9 |
2years |
AG2 |
LR59/106/726 |
1.5 |
28 |
7.85×2.6 |
0.47 |
22k |
0.9 |
2years |
AG3 |
LR41/192 |
1.5 |
35 |
7.85×3.5 |
0.64 |
22k |
0.9 |
2years |
AG4 |
LR66/177/626 |
1.5 |
18 |
6.75×2.5 |
0.32 |
47k |
0.9 |
2years |
AG5 |
LR48/193/754 |
1.5 |
60 |
7.90×5.4 |
0.90 |
22k |
0.9 |
2years |
AG6 |
LR69/171/920 |
1.5 |
32 |
9.40×2.1 |
0.55 |
15k |
0.9 |
2years |
AG7 |
LR57/195/927 |
1.5 |
42 |
9.40×2.5 |
0.64 |
15k |
0.9 |
2years |
AG8 |
LR55/191/L1120 |
1.5 |
45 |
11.50×2.1 |
0.79 |
15k |
0.9 |
2years |
AG9 |
LR45/194/936A |
1.5 |
45 |
9.40×3.5 |
0.86 |
15k |
0.9 |
2years |
AG10 |
LR54/189/L1130 |
1.5 |
70 |
11.5×3.1 |
1.18 |
15k |
0.9 |
2years |
AG11 |
LR58/162 /721 |
1.5 |
20 |
7.85×2.1 |
0.38 |
7.5k |
0.9 |
2years |
AG12 |
LR43/186 |
1.5 |
100 |
11.50×4.1 |
1.47 |
7.5k |
0.9 |
2years |
AG13 |
LR44/A76 |
1.5 |
145 |
11.50×5.4 |
1.96 |
7.5k |
0.9 |
2years |
