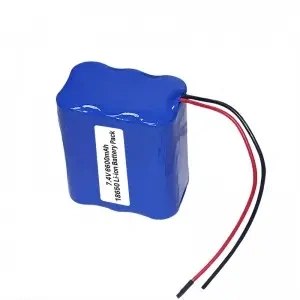

7.4V 6600mAh 18650 Li-ion Battery Pack for Military Flashlight

Cell type: 18650 Li-ion Battery 3.7V 2200mAh
Configuration2S3P
Voltage & Capacity: 7.4V 6600mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, short-circuit protection.
  • 7.4V 6600mAh 18650 Li-ion Battery Pack for Military Flashlight
  • 7.4V 6600mAh 18650 Li-ion Battery Pack for Military Flashlight
Description

Key Features of 18650 Li-ion Battery Pack for Military Flashlight:

  • Reliable & safe performance, long cycle life
  • Uses the most advanced chips from Japan and the United States for Protection systems (PCM/BMS)
  • We offer different 18650 battery capacity cells: 2000mAh, 2200mAh, 2600mAh, 2800mAh, and 3000mAh.
  • Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
  • Multiple parallel and series combinations and intelligent modular battery designs are possible
  • We can provide OEM/ODM battery pack services for your scanner needs


Specification of 18650 Li-ion Battery Pack for Military Flashlight:

Type Parameters
Nominal voltage  7.4V
Rated capacity 6600mAh (0.2C discharge)
Continuous working current 1-4A
Overcurrent protection value 26.4-33A
Suitable device power ≤48.8W
Overcharge protection voltage 4.25 ± 0.025V/Cell (optional)
Discharge protection voltage 2.50 ± 0.025V/Cell (optional)
Charge mode Constant current, constant voltage
Charge voltage 8.45-8.55V
Charge current 1.3-3.3A
Charge temperature 0~45℃、45~85%RH
Discharge temperature -20~55℃、45~85%RH
Storage temperature and humidity range Short term (Over 1 month): -20~+55℃、45~85%RH
Medium term (Over 3 months):-20~+45℃、45~85%RH
Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions Refer to sample
Weight >300g
