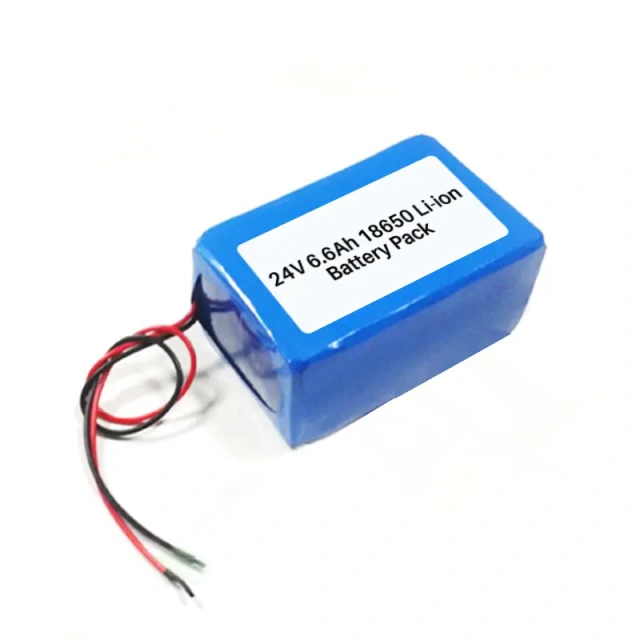

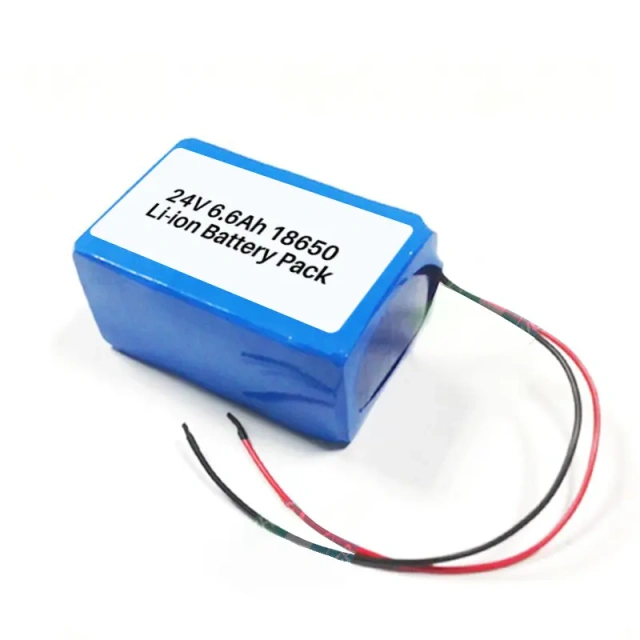

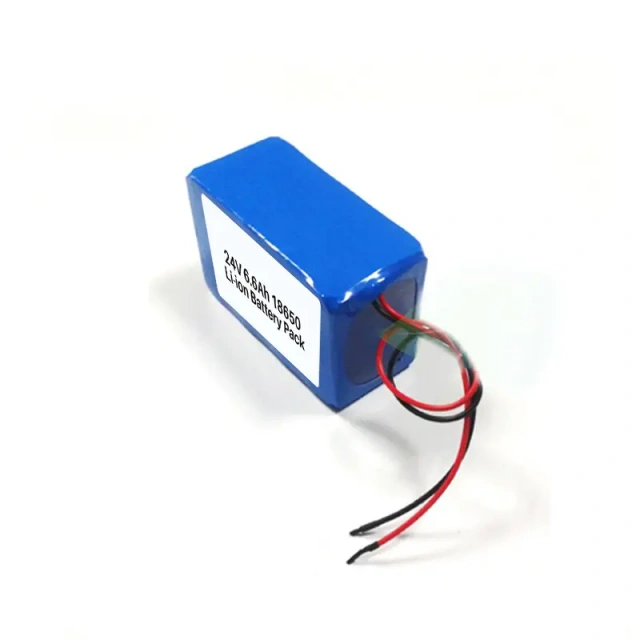

24V-Class 6.6Ah 18650 Li-ion Battery Pack

24V-class 7S 18650 Li-ion battery pack with 6.6Ah reference capacity for industrial devices, backup power and automation. Custom BMS, wires and connectors.
Contact Us Download
  • 24V-Class 6.6Ah 18650 Li-ion Battery Pack
  • 24V-Class 6.6Ah 18650 Li-ion Battery Pack
  • 24V-Class 6.6Ah 18650 Li-ion Battery Pack
Description

24V-class cylindrical Li-ion pack

This 24V-class 6.6Ah battery pack uses cylindrical 18650 Li-ion cells in a 7S reference arrangement. In standard 18650 Li-ion terminology, the 7S nominal voltage is 25.9V; the pack is commonly described as a 24V-class battery because it is used to replace or support 24V systems.

The final electrical parameters, BMS thresholds, connector and mechanical layout should be confirmed against the device and charger specification.

Reference specifications

ChemistryRechargeable cylindrical 18650 Li-ion
Reference arrangement7S3P
System class24V-class
Nominal voltage25.9V
Reference capacity6.6Ah
Typical applicationsIndustrial devices, backup power, robotics and automation

Customization and engineering review

  • Cell grade, capacity, holder, nickel strips and pack dimensions
  • BMS/PCM thresholds, NTC, wire length, connector and insulation
  • Charge profile, continuous current, peak current and mounting layout
  • Private label, bulk or retail packaging

Please provide the device load, charger specification, continuous and peak current, connector, dimensions, expected operating temperature and quantity. Original pack photos or drawings help confirm the interface.

Need a 24V-class pack reviewed for your equipment? Send the electrical and mechanical requirements.

Contact our engineering team  |  Request a sample

FAQ

Why is it called 24V-class if the nominal voltage is 25.9V?

Li-ion 7S packs use seven 3.7V cells, giving a 25.9V nominal value. They are commonly used in 24V-class systems; compatibility must be confirmed with the device and charger.

Is this a lithium-polymer pouch pack?

No. This reference configuration uses cylindrical 18650 cells.

Which documents are available?

Documentation is matched to the confirmed configuration and destination market. CE, RoHS, REACH, UN38.3, MSDS and shipment-related documents can be discussed during quotation.
