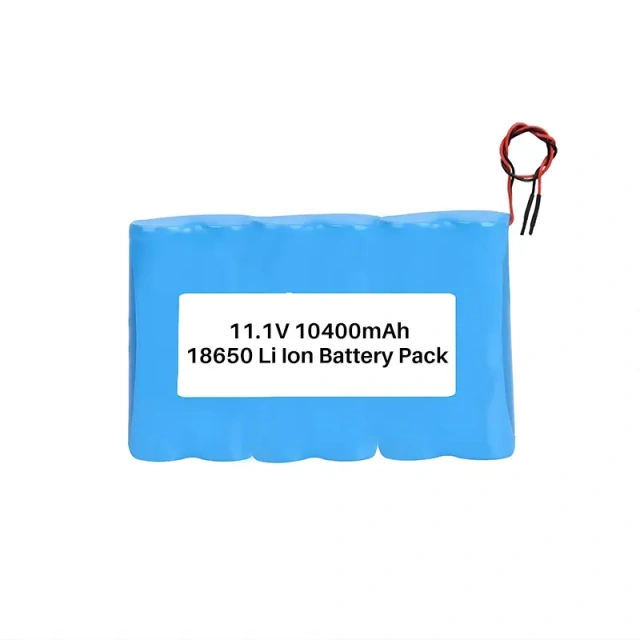

11.1V 10400mAh 18650 Li-Ion Battery Pack for Medical Devices

Cell type: 18650 3.7v 2600mAh
Configuration: 3S4P
Voltage & Capacity: 11.1V 10400mAh
Protection functions: overcharge protection, over-discharge protection, over-current protection, and short-circuit protection.

Description

Key Features of Lithium Battery Pack for Scanner Survey:

Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection system (PCM/BMS)
Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs

Specification of Lithium Battery Pack for Scanner Survey:
Type	Parameters
Nominal voltage	11.1V
Rated capacity	10400mAh (0.2C discharge)
Continuous working current	2.0-5.0A
Overcurrent protection value	12-25.0A (adjustable)
Suitable device power	≤115.4W
Overcharge protection voltage	4.25 ± 0.025V/Cell (optional)
Discharge protection voltage	2.50 ± 0.025V/Cell (optional)
Charge mode	Constant current, constant voltage
Charge voltage	12.60-12.90V
Charge current	2.1-5.2A
Charge temperature	0~45℃、45~85%RH
Discharge temperature	-20~55℃、45~85%RH
Storage temperature and humidity range	Short term (Over 1 month): -20~+55℃、45~85%RH
	Medium term (Over 3 months):-20~+45℃、45~85%RH
	Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions	Refer to sample
Weight	>600g
